Head Loss



Model Description

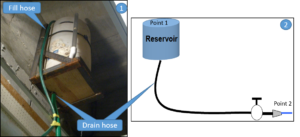

This is a demonstration used to show the effects of head loss in pipe flow.  A large water container (bucket or drum) with a hose is placed at a known elevation (see photo 1 in figure below). Different nozzle diameters can be used to demonstrate the effects of minor losses on pipe flow.  This demonstration should take 15-20 minutes.

Engineering Principle

The energy equation is the primary solution tool used in pipe flow.

\frac{p_1}{\gamma} + \frac{V_1^2}{2g} + z_1 + h_P = \frac{p_2}{\gamma} + \frac{V_2^2}{2g} + z_2 + h_T + h_L

For inviscid fluids with no losses, this equation simplifies to the Bernoulli equation:

p_1 + \frac{1}{2}\rho V_1^2 + \gamma z_1 = p_2 + \frac{1}{2}\rho V_2^2 + \gamma z_2

In this demonstration the Bernoulli equation is used to predict the ideal (maximum) velocity from the hose.  This is done by applying the equation between the top of the water container (Point 1) and the hose nozzle (Point 2) in the graphic labeled 2 in the figure above.

To simplify the analysis, several assumptions are made:

  Point 1 is a free surface: p_1 and V_1 = 0 .

  The water exits as a free jet: p_2 = 0

  The hose nozzle is at the zero datum: z_2 = 0

Therefore, for the above system the velocity at the nozzle can be found by:

V_2 = \sqrt{2gz_1}

Again, this is the ideal velocity and neglects any losses in the system.

By finding the actual velocity as described later one can calculate the head loss in the system.  Returning to the energy equation and applying the same assumptions as before, head loss is given by:

h_L = z_1 - \frac{V_2^2}{2g}

What You Need

Item Quantity Description/Clarification

Large bucket or drum (10L or more)

1

The container must be vented to the atmosphere at the top and have a spigot for attaching a hose.

Hose 1

Typical garden hose

Nozzle

Various

It is best to have at least two different sizes.

Spigot

1

This can be at the reservoir or hose end.

Stop Watch

1
Bucket 1

The bucket must be accurately labeled so that it can measure volume.  Verify any manufacturer markings.

Graduated Cylinder

1

How It’s Done

Before Class: Set the reservoir in a secure overhead position (6-8 feet high), ensure that the reservoir is filled and select a nozzle for the first demonstration.  Have the bucket and graduated cylinders ready for the demonstration. Make sure to do a test run to ensure no leaks are present and to check that the math works as expected for your particular setup.  The first setup will take up to an hour.

In Class: Show the students the setup and have them apply the Bernoulli equation to predict the maximum theoretical velocity from the hose.  Once they have a value, open the spigot on the reservoir (1-2 mins depending on the size of your water tank – an 11 liter tank yields about 4 minutes of flow) and drain the water into the bucket.  After a sufficient amount of time, measure the volume of water and calculate the volumetric flow rate as Q = Volume/Time and the velocity as V = Q*Area, where the area is the cross-sectional area of the nozzle outlet.  Compare this value to that predicted by the Bernoulli equation – it will be significantly less.

Explain that the difference is due to the inviscid assumptions in Bernoulli, and that the energy equation analysis is more accurate.  Then calculate the head loss using the equation given above .  Repeat the experiment using other nozzles.  The value of head loss will change due to the different minor losses.

Observations: By comparing the actual velocity to the ideal, the students should observe that the Bernoulli equation is limited in its applications.  Additionally, they will learn that the inviscid assumption overly simplifies pipe flow analysis.

Additional Application: Place the reservoir close to a hose and water source.  This will allow you to rapidly refill the tank between demonstrations.  Also, since velocity and head loss are functions of elevation, maintain the hose nozzle at a fixed height while discharging to ensure consistent results.



Did you try this? Comment below to let us know how it went.

Cite this work as:

Justin Highley (2019), "Head Loss," https://www.handsonmechanics.org/fluid-mechanics/551.
