Varignon’s I-Beam


Model Description

Introduce Varignon’s theorem to students as a simple way to determine the moment about a point. This demonstration should take 5-7 minutes.

Engineering Principle

Varignon’s Theorem states that the moment of a force is equal to the sum of the moments of that force’s components about the same point.

M_{PT} = F_x \times d_{\perp y} + F_y \times d_{\perp x}

where d_{\perp} is the perpendicular distance from the Force’s Line of Action to the point.

What You Need

Item Quantity Description/Clarification
Force Vectors 3 One vector represents the total Force Vector.  The other two should be smaller and represent the components of the force in each orthogonal direction.  The force vectors should have magnets taped to their backs.
I-Beam 1 The I-Beam should be made of durable material, then fastened to another piece of poster board with a light, large headed bolt.  This allows the I-beam to rotate when fixed to the board.

How It’s Done

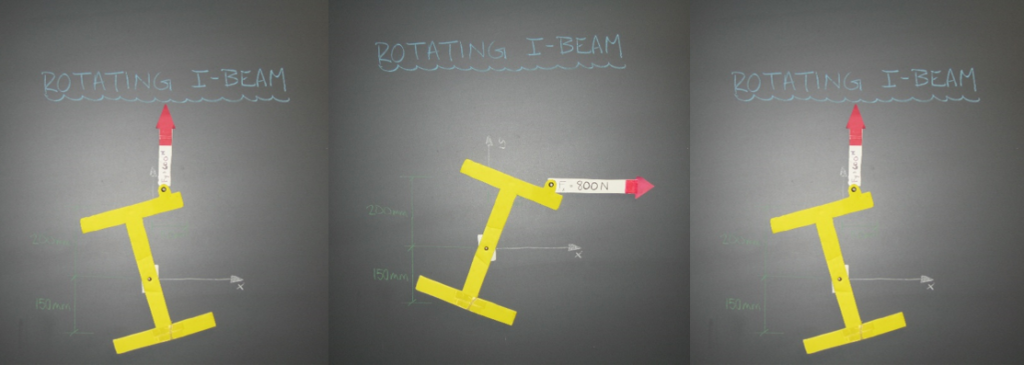

In Class: Introduce the problem of determining how much moment this force acting on a lifting eyelet on an I-beam will cause about the point O.  Show how the complex geometry can complicate this calculation.  Now Introduce Varignon’s theorem as a simple way to avoid this problem.  After stating the theorem, put it into practice on the I-beam.  Break the force into it’s orthogonal components.  After doing so calculate the combined moment of the force’s components about point O.  Show how each component can cause either positive or negative moment, so students must pay attention to the direction that each force causes rotation in.

Did you try this? Comment below to let us know how it went.

Cite this work as:

Jason Evers (2019), "Varignon's I-Beam,"
