Armor Attack



Model Description

This training aid demonstrates a practical application of the kinematic relationships for a translating and rotating frame of reference. This demonstration should take 10-15 minutes.

Engineering Principle

This lesson is an application of the previously developed vector equations for velocity and acceleration in a translating and rotating frame of reference.

v_b = v_a + v_{b/a}

v_b = v_a + \Omega \times r_{b/a} + \left(v_{v/a}\right)_{xyz}

a_b = a_a + a_{b/a}

a_b = a_a + \dot{\Omega} \times r_{b/a} + \Omega \times \left(\Omega \times r_{b/a}\right) + 2\Omega \times \left(v_{b/a}\right)_{xyz} + \left(a_{b/a}\right)_{xyz}

Required Items

Item Qty Cost and Build Time Description/Details
Assorted Military Vehicles and Toy Soldiers 1 $20-40 The essential pieces are tanks, cannons, and a helicopter.

Use

Before class: set up the “attack”

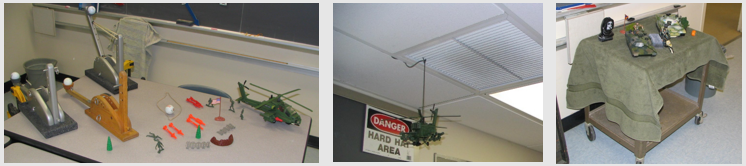

The cannons (artillery) are positioned at one corner, the helicopter is hung from the ceiling in the middle, and the tanks are on a moving cart on the other side of the classroom.

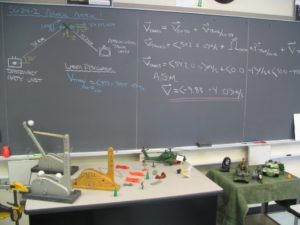

In class: solve the attack problem

The situation is developed that the scout helicopter (translating and rotating) uses a laser designator and “sees” the approaching tanks moving at a relative velocity at an instant in time.  The question to be answered is to determine the absolute velocity of the approaching tank column (relative to the stationary artillery unit) and then to determine how many minutes are left before the advancing tanks are within range of the artillery.

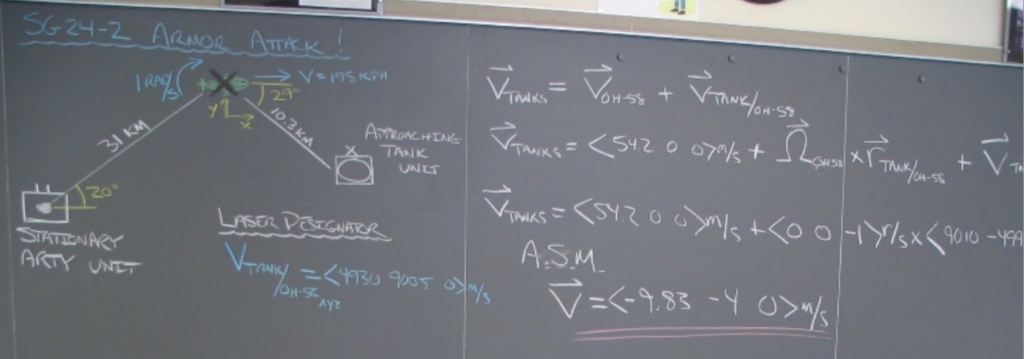

Solution:



Did you try this?  Comment below to let us know how it went.

Cite this work as:

Tom Messervey (2017), "Armor Attack," http://www.handsonmechanics.org/dynamics/278.
